GB-SPC4013 series EPS cutting machine is used for cutting various specifications of the medium-sized plate cutting machine, is the bubble plastic products factory to make medium-sized bubble plastic plate supporting equipment. The machine can fully realize horizontal cutting, vertical cutting, cut cutting; equipment can cut a variety of different sizes, different thickness of the plate.

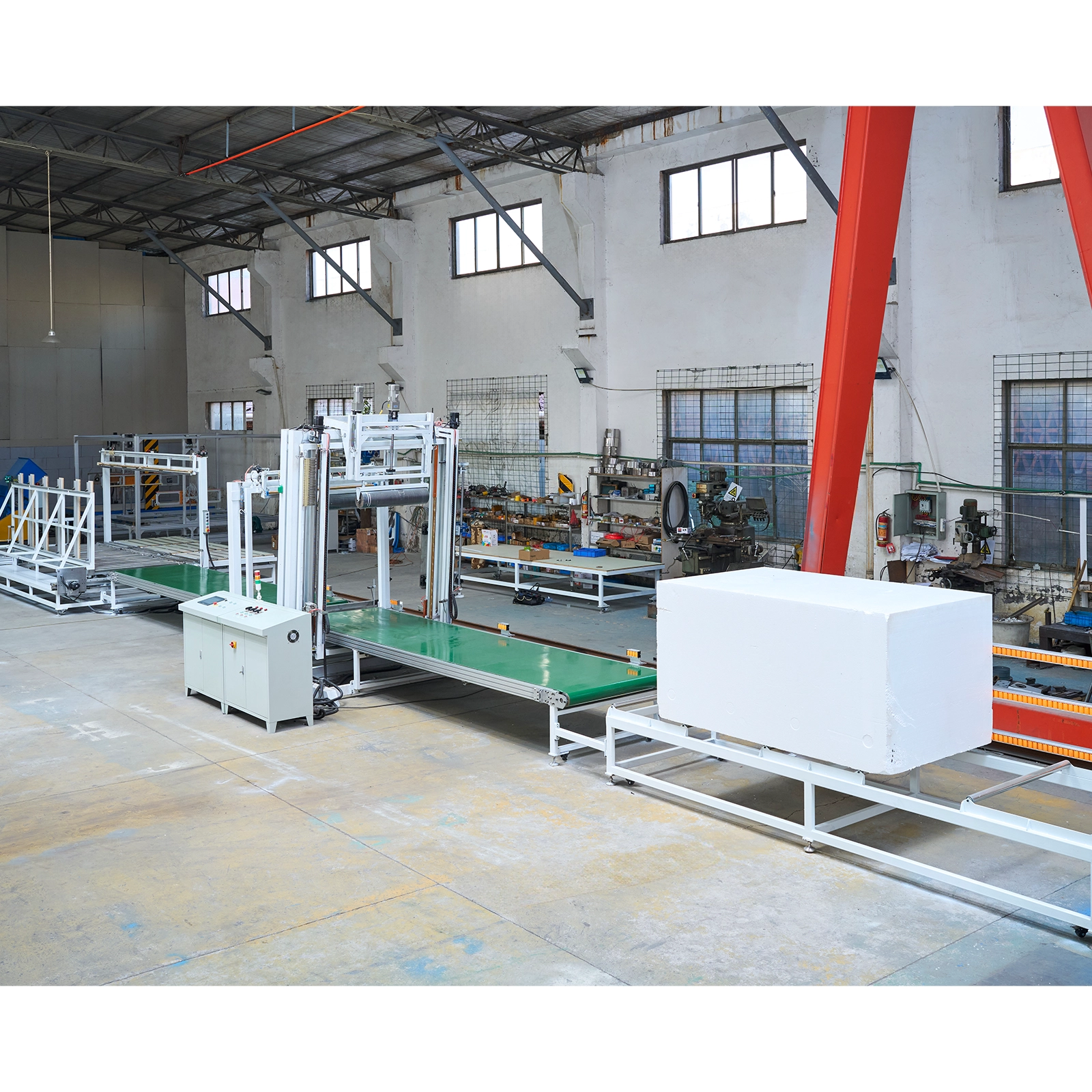

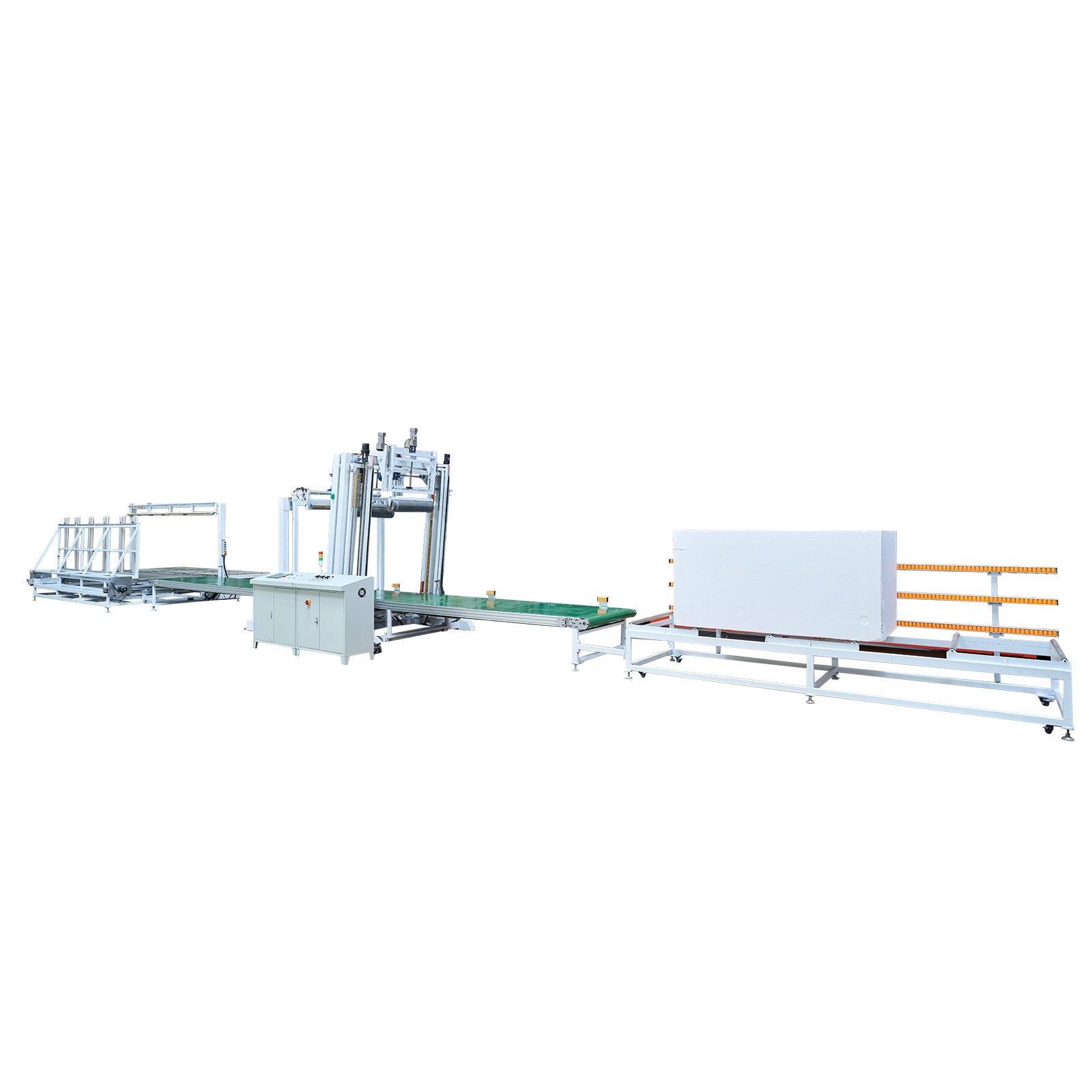

Automatic Three Table Continuous Eps Sheet Cutting Machine
Specifications
| No. | Description | Unit | Parameter | |
| 1 | Net cut size | mm | 4000×1300×1300 | |
| 2 | Electric heating wire size and material | mm | Φ0.4 G20Ni80 | |
| 3 | Total installed power | KW | 17.5 | |
| 4 | Cutting voltage regulator | Capacity | KVA | 1PC of 7.5K and 2pcs of 2.5KVA |
| Voltage | V | 38V-52V adjustable | ||
| 5 | Overall Size | mm | 18205x2336x3110 | |
| 6 | Machine Weight | Kg | 4000 | |
Mechanical Characteristics

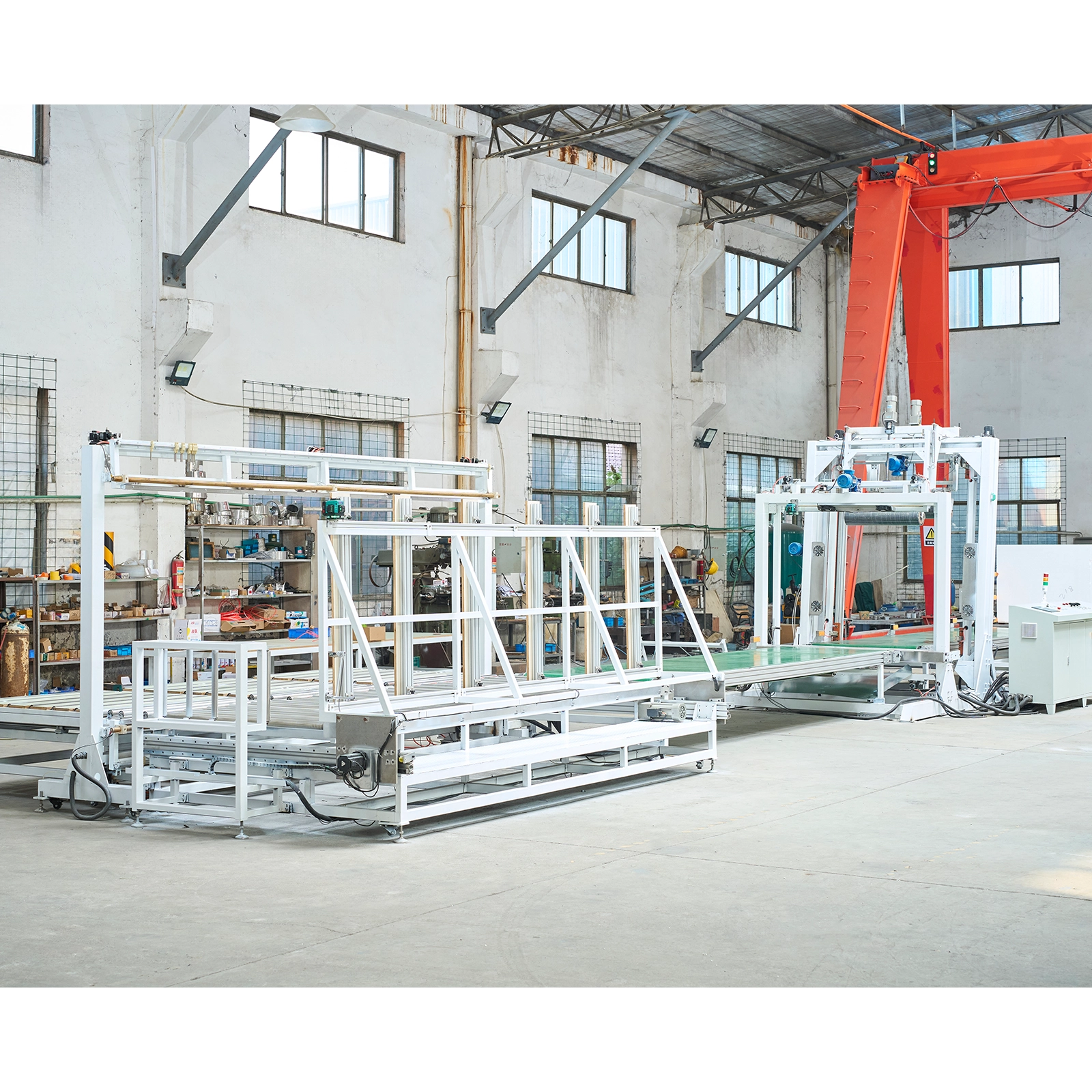

- The main frame of the machine is made of profile welding and various special connectors, with motion and stability

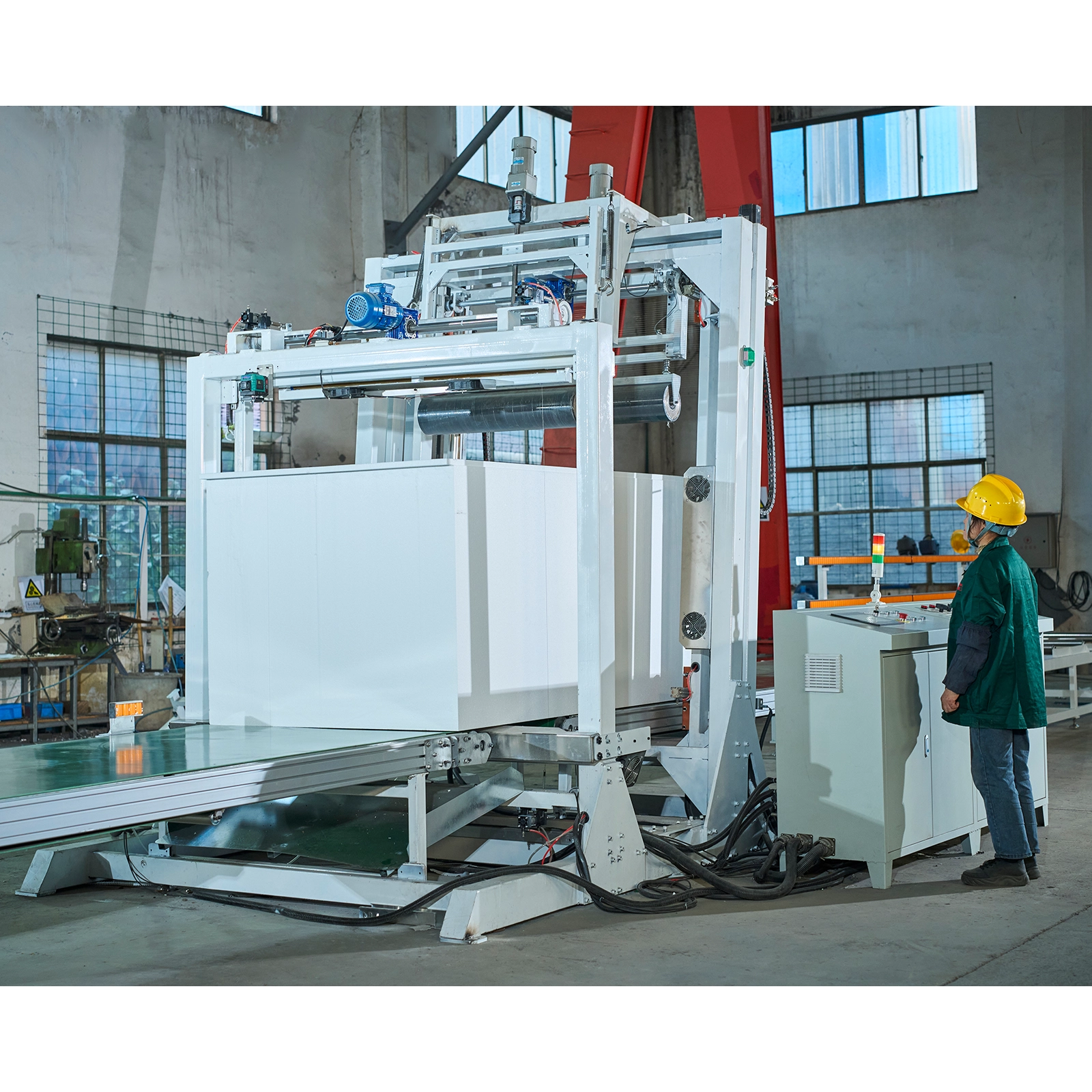

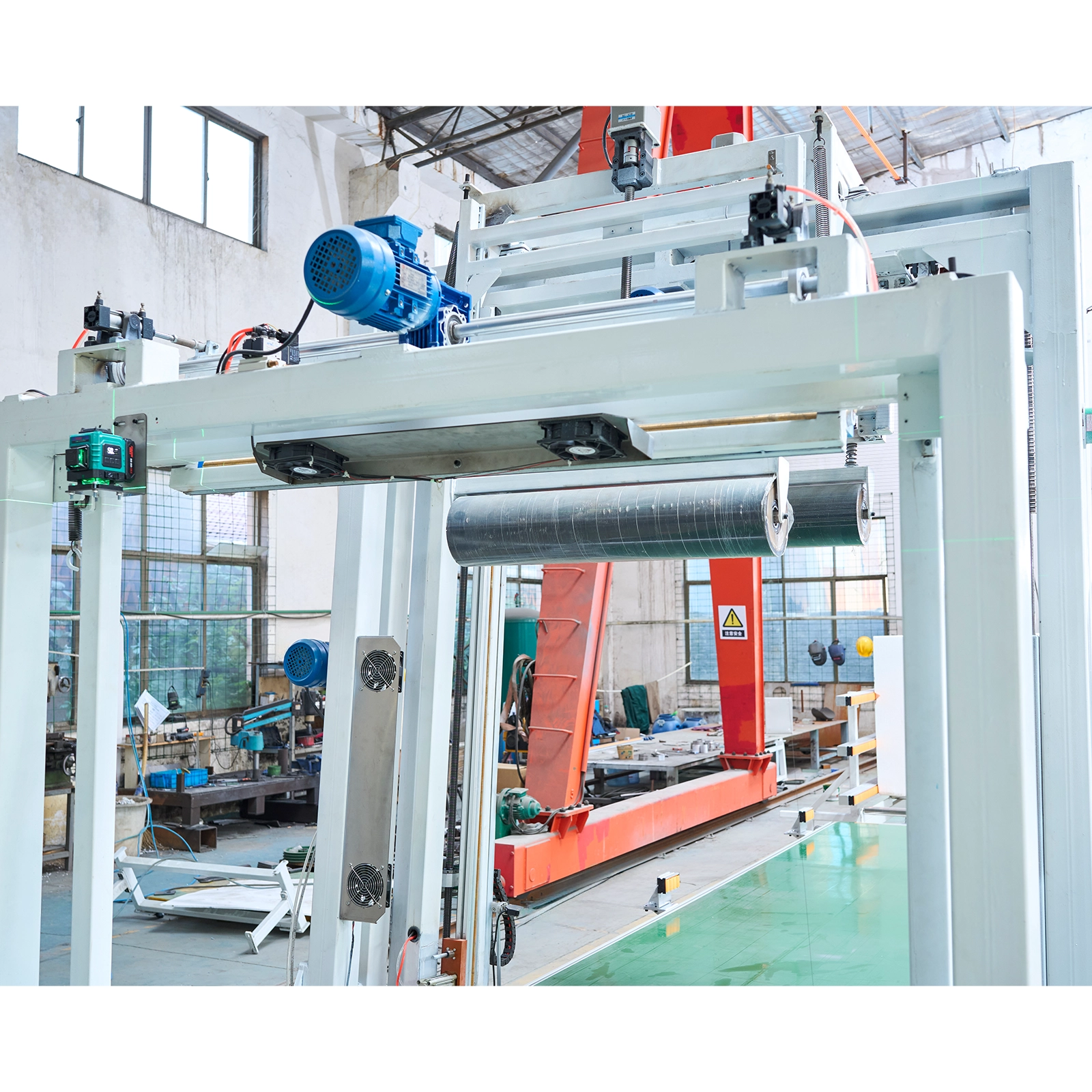

- The cutting frame adopts reducer and chain transmission, and the belt conveying operation is smooth and free speed regulation。
- Voltage regulation: This machine is equipped with a 7.5KVA transformer and two 2.5KVA transformers, through the control panel knob voltage adjustment, the voltage output is 38-52V adjustable. The sheet cutting rack can be hung with 50PCS heating wire.
- This machine adopts PLC control, and the parameter setting is simple and convenient. At the same time, the equipment has the travel protection function. When the movement stroke exceeds the specified stroke, the equipment protection automatically stops.
Product Detail
