GB-SPC300A series EPS CNC cutting machine is a medium-sized electric heating cutting machine used for cutting various specifications of foam plastic board products, and it is the supporting equipment for foam plastic products factory to make medium-sized foam plastic board. The machine can fully realize the straight-line cutting.

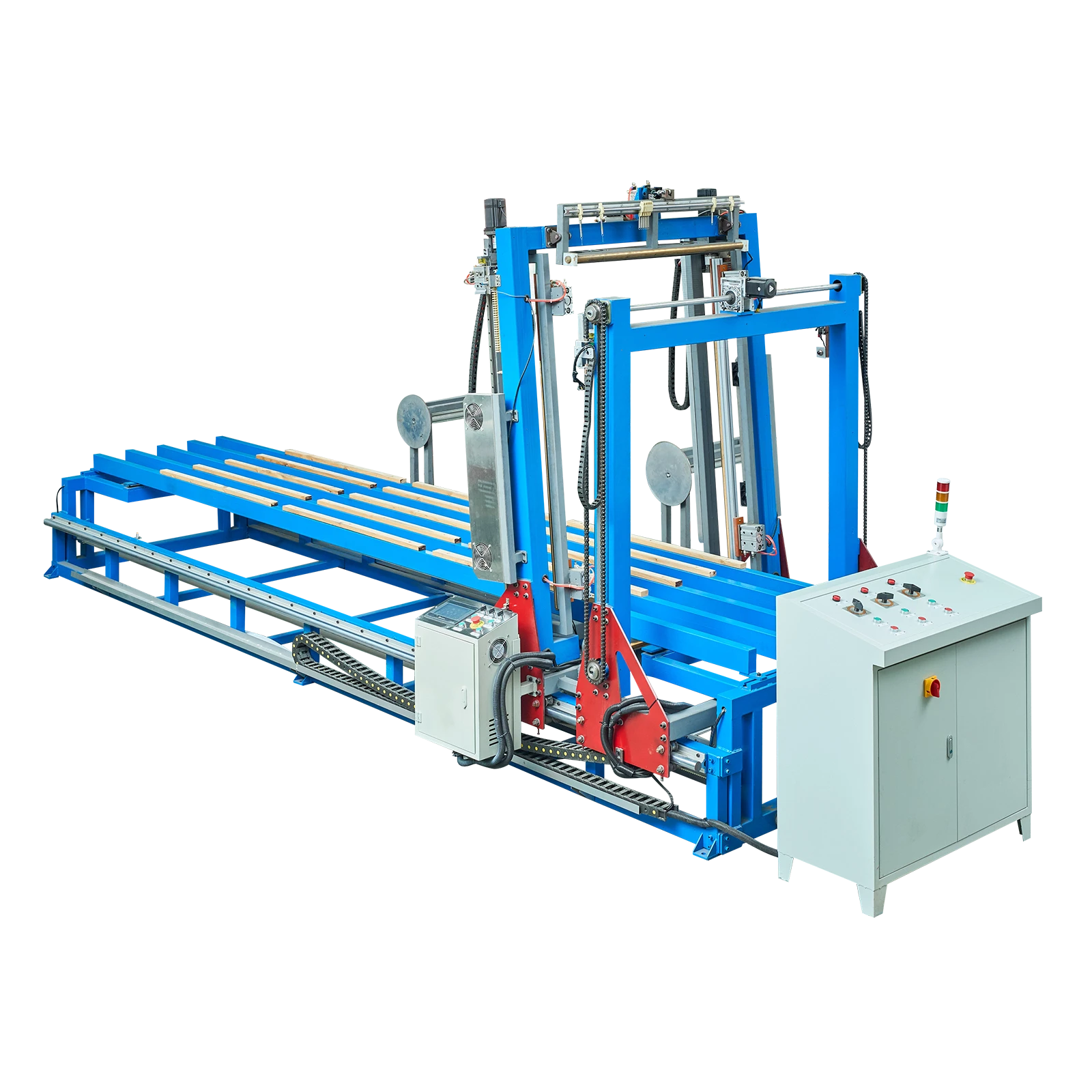

GB-SPC300A Continuous Block Cutting Machine
Specifications
| No. | Description | Unit | Parameter | |
| 1 | Net cut size | mm | 4000×2500×1300 | |
| 2 | Electric heating wire size and material | mm | Φ0.4 G20Ni80 | |
| 3 | Total installed power | KW | 9.35 | |
| 4 | Cutting voltage regulator | Capacity | KVA | 0.5KW、2KW、5KW EACH |
| Voltage | V | 38V-52V(Continuous adjustable) | ||
| 5 | Overall Size | mm | 5600x2800x2520 | |
| 6 | Machine Weight | Kg | 1500 | |
Note: the cutting machine can also customize special specifications according to the user’s needs.
Mechanical Characteristics
- The frame of the machine is all connected by the square connect, and the movement is stable.

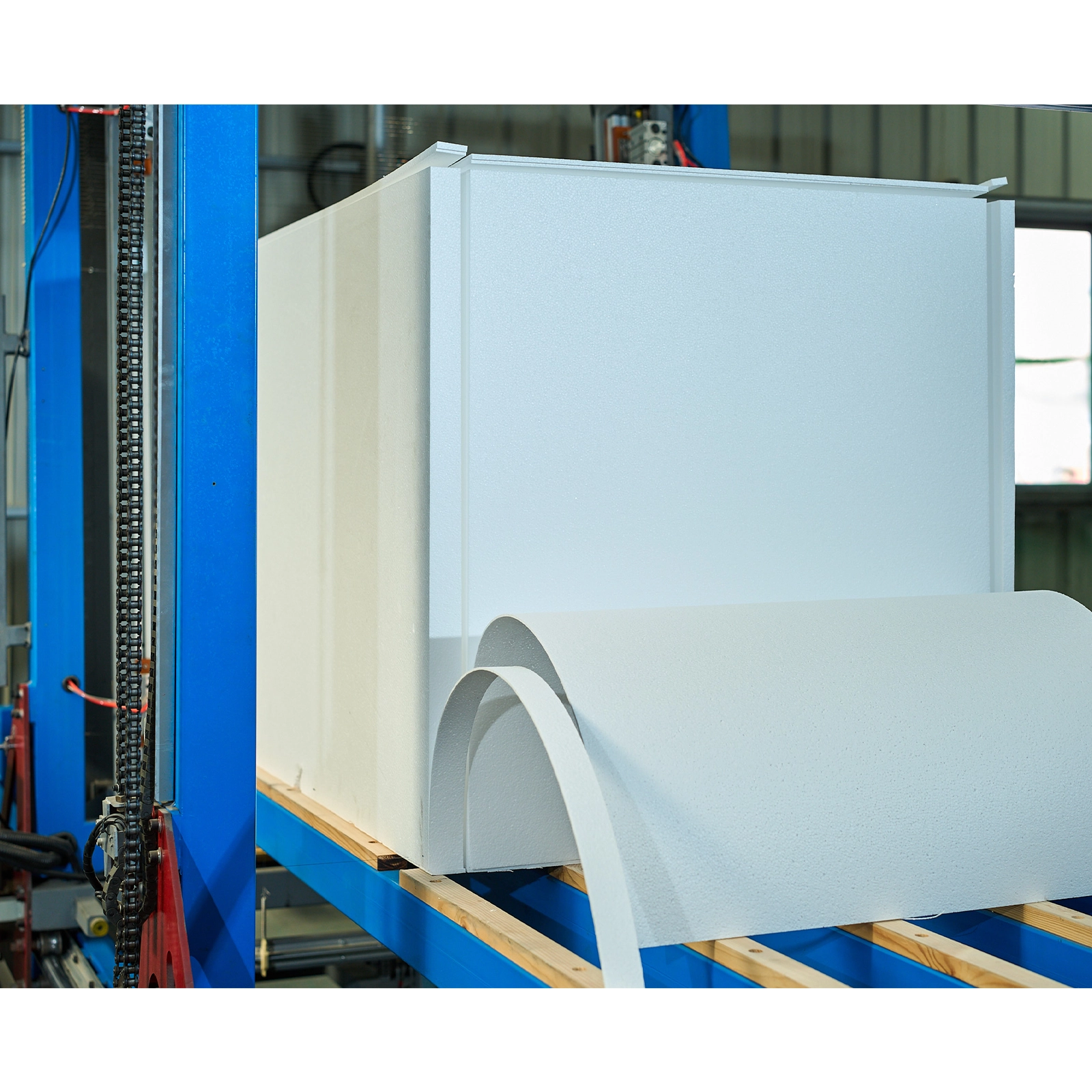

- The machine is divided into horizontal cutting and vertical cutting, smooth running smoothly, free speed control; suitable for cutting plate and foam block products.
- Voltage regulation: This machine is equipped with three transformers, 5kw、 2kw and 0.5kw respectively, and adjust the voltage through the knob, the voltage output is 36V-50V adjustable. 30 PCS electric heating wires can be installed on the cutting frame.

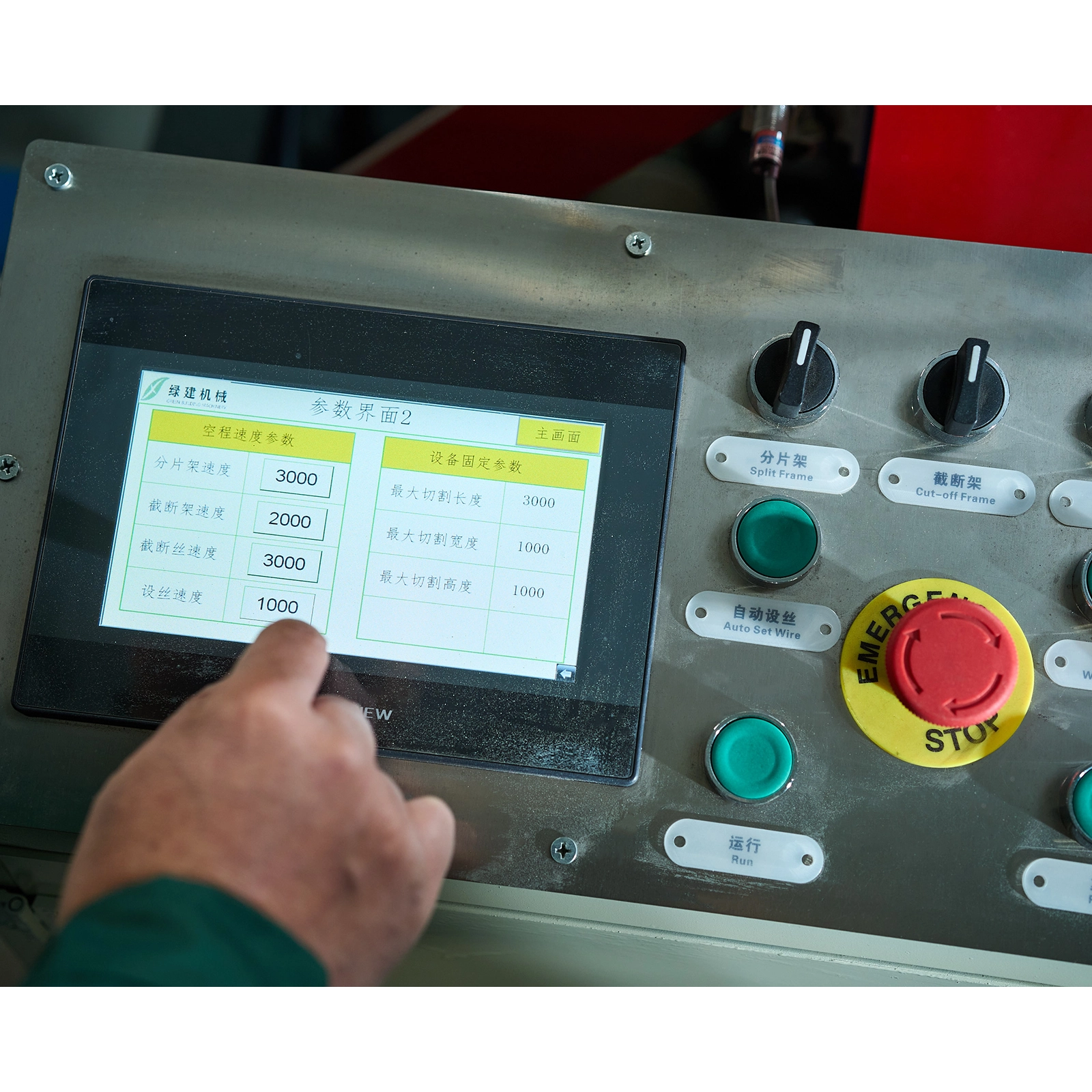

- This machine adopts PLC control, and the parameter setting is simple and convenient. At the same time, the equipment has the travel protection function. When the movement stroke exceeds the specified stroke, the equipment protection automatically stops.

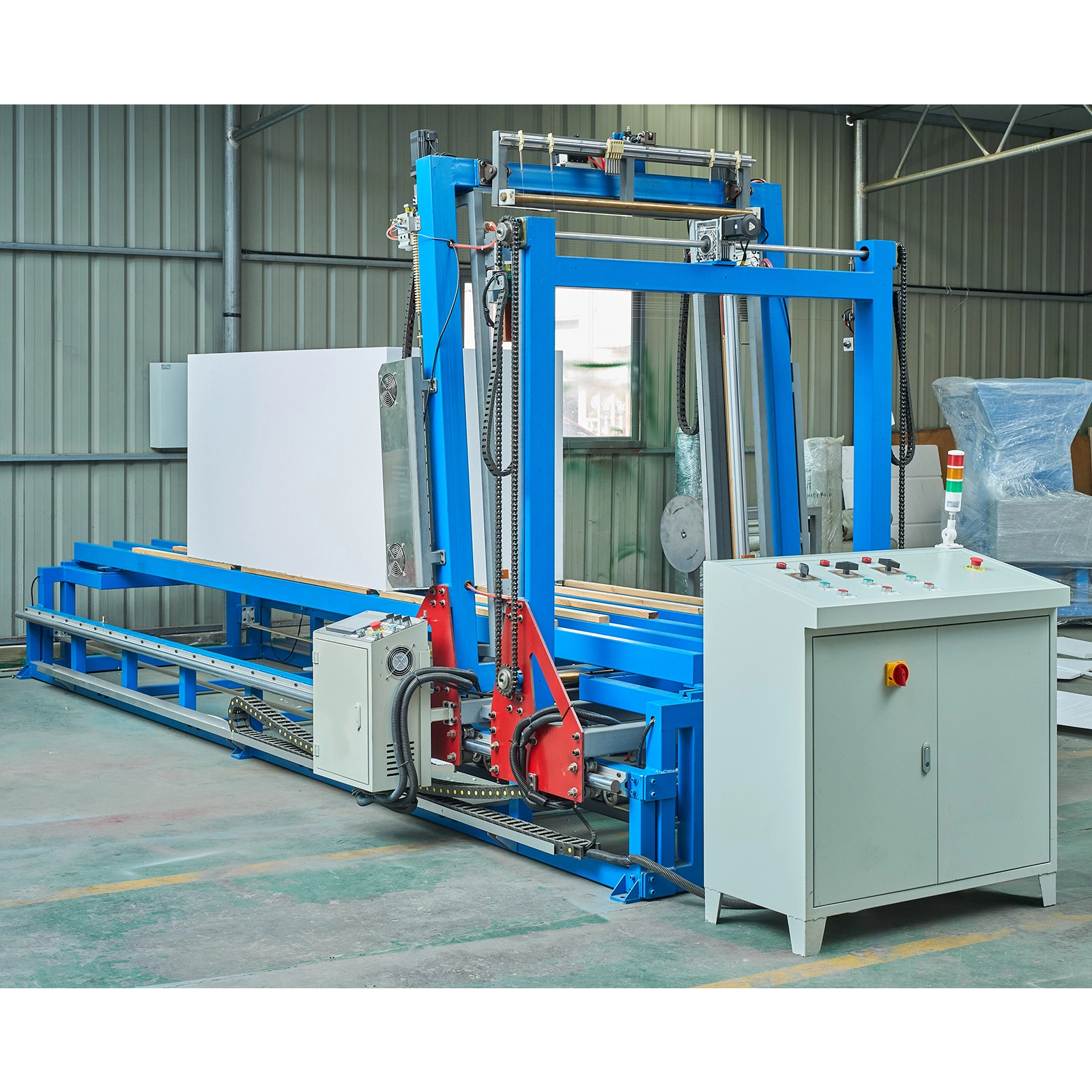

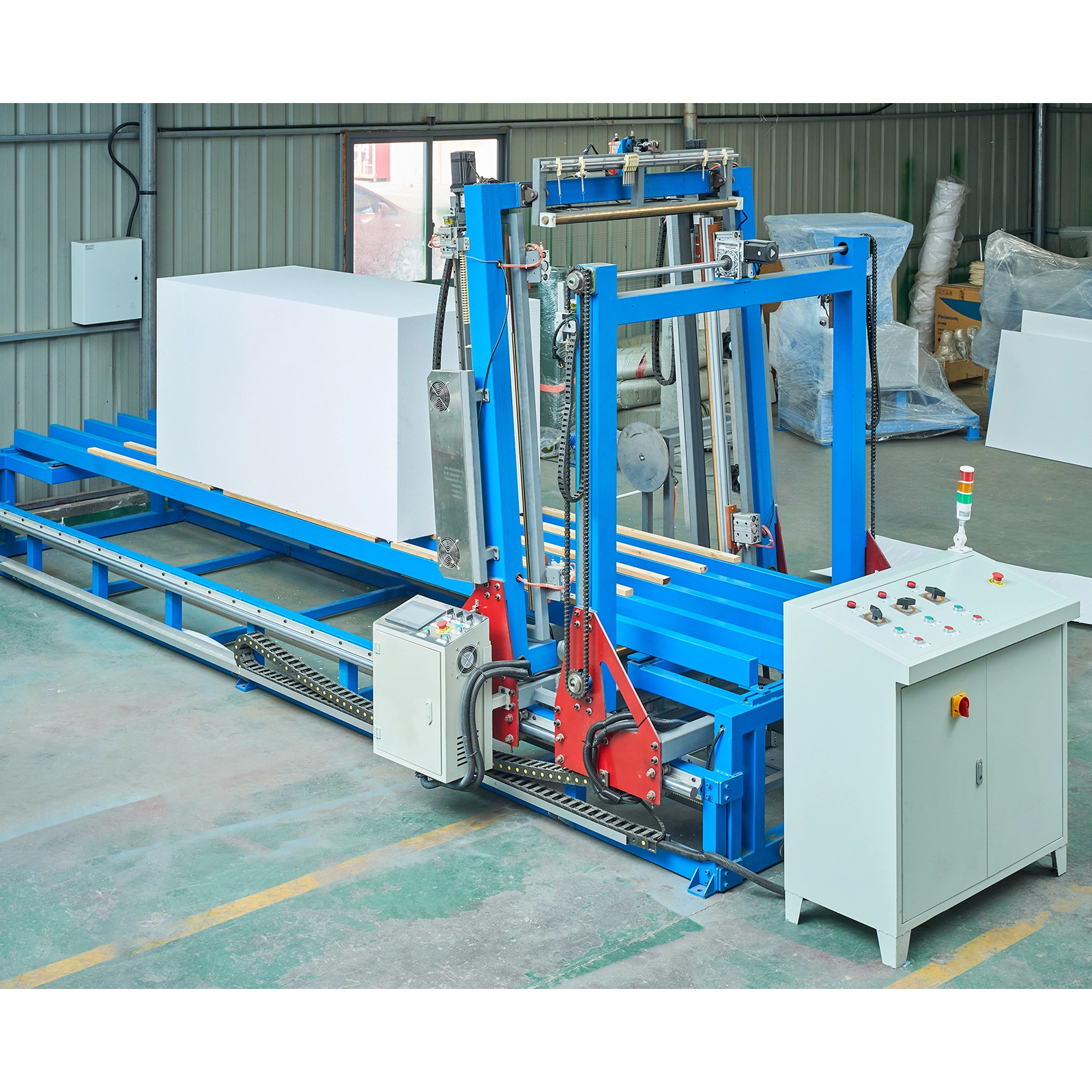

Product Detail
